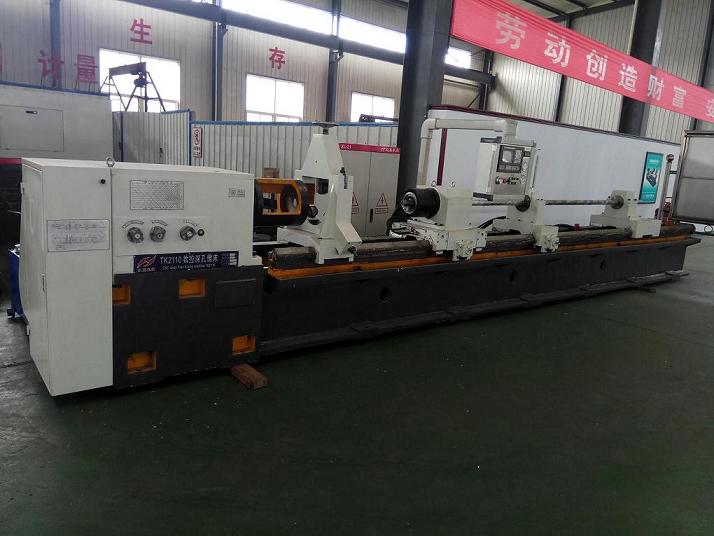

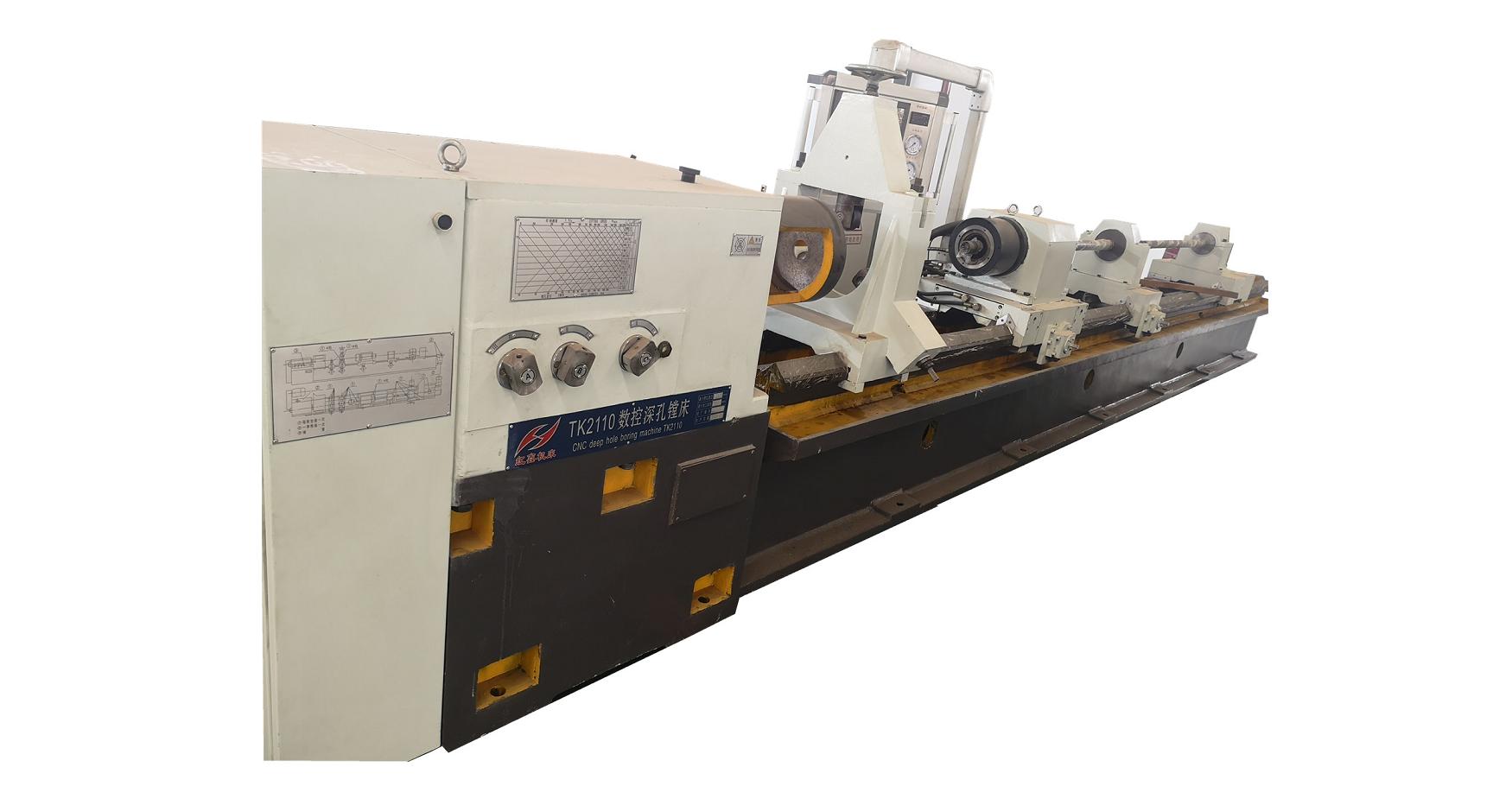

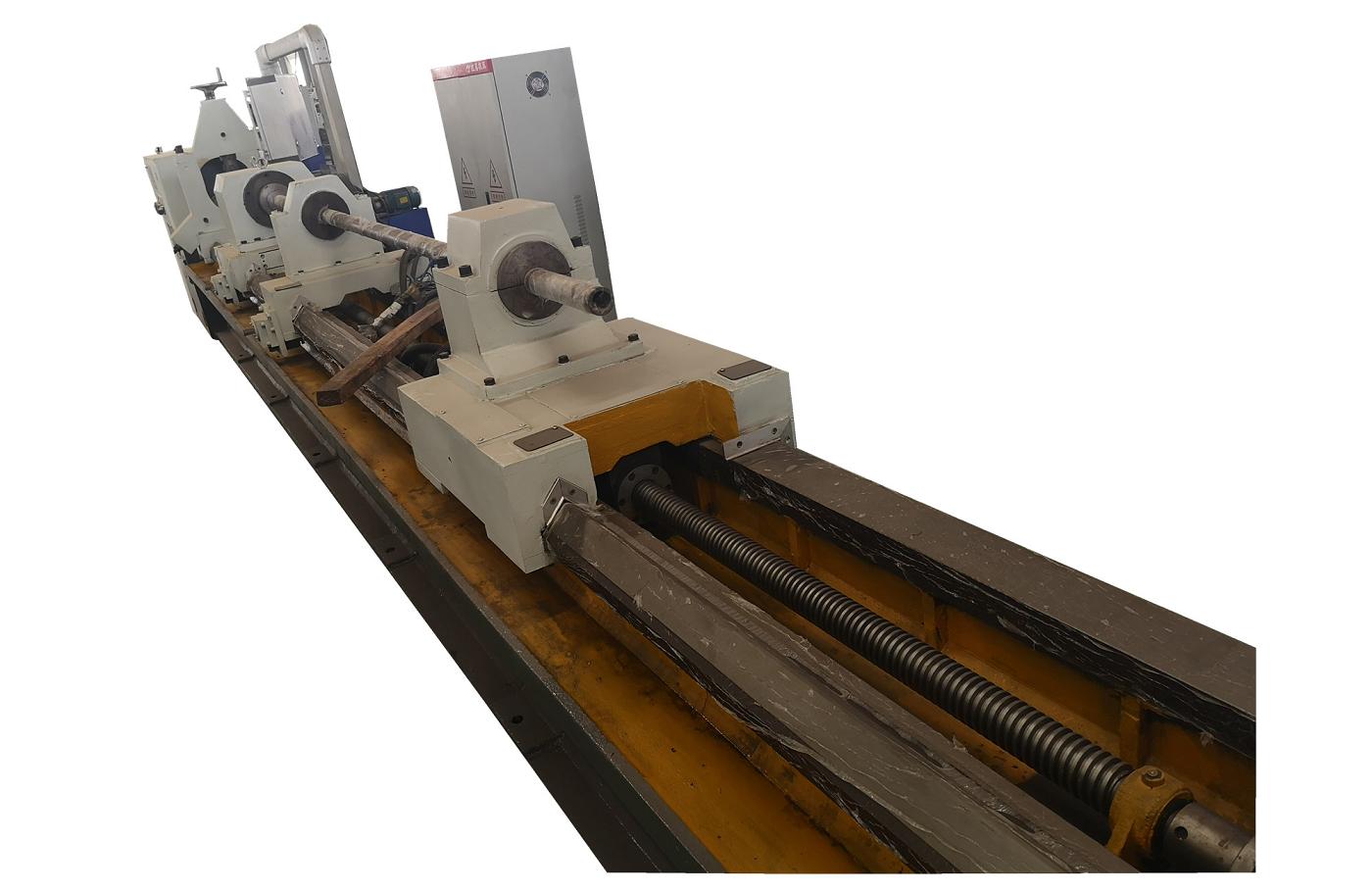

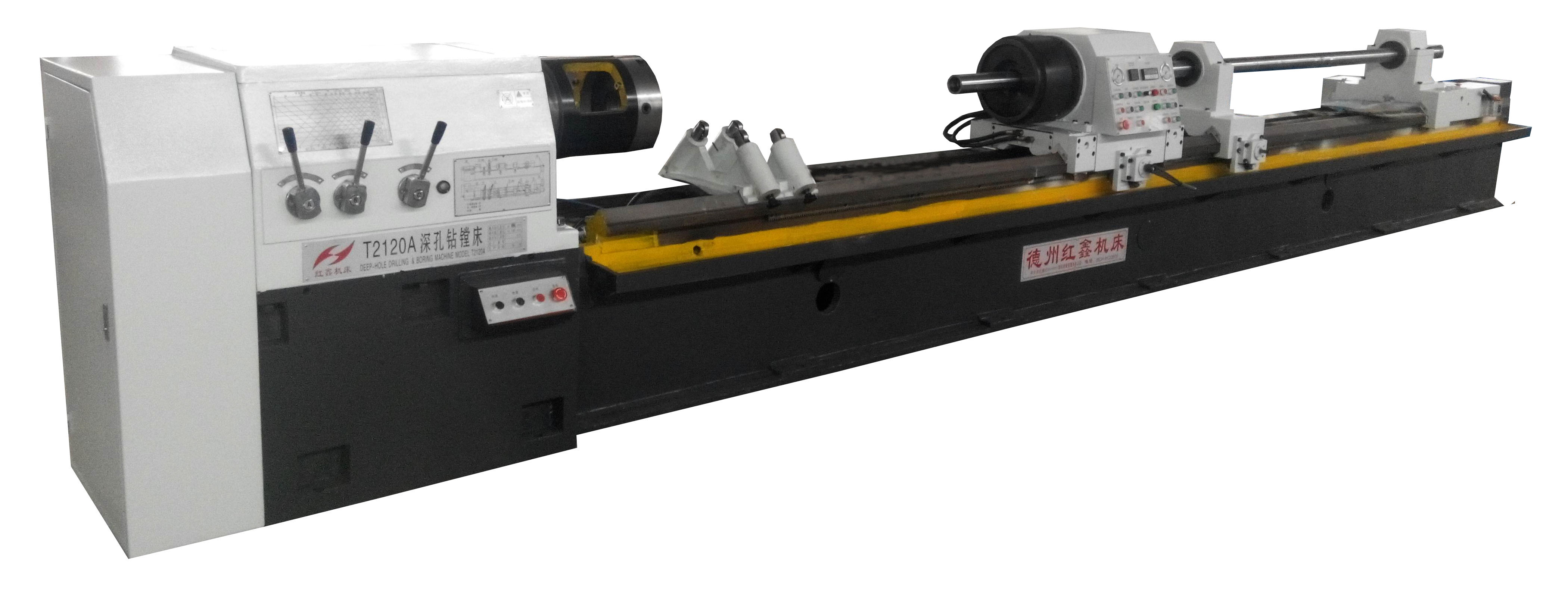

TK2116 deep hole drilling and boring machine

Machine data  of  TK2116:

Drilling diameter ………………… …………Φ28-80mm

Boring diamter ……………………………  Φ40-160mm

Maximum workpiece length ………………………… 3000mm

Job OD clamping   …………… …………Φ60-260mm

Center height(from spindle center to bed rail) …………… 320mm

Spindle hole ID …………………………………Φ75mm

Spindle taper hole……………………………………Φ85mm,1:20

Main motor………………………………………… N=15kW,

    Spindle speed ……………………………       61-1000   12 steps

Feed speed  ……………………………       5~720mm/min (infinite)

Rapid speed of carriage …………………………… 1000mm/min

Feed motor…………N=3.7kW,              AC servo motor

Cooling motor………………………………………N=4 kW

Hydraulic motor…………………………        N=1.5kW,n=1440r/min

Coolant volume………………………           200L/min

Coolant  rated pressure …………………………  2.5MPa

Siemens 808D  CNC

Max. Clamping force by pressure head on work piece………20KN



Machine precision:

Machining drilling precision………………………………IT9~IT10

Rounghness(drilling)…………………………………Ra6.3~12.5μm

Rounghness(boring) …………… Ra1.6~3.2μm(depending on workpiece material)

Rounghness(burnishing)………………………………….Ra0.4μm

Hole Straightness  ≤0. 3/1000

Machining efficiency:

cutting speed :normally 50-100m/min

Feed speed ;   normally 10-100mm/min

Maximum stock removal when boring:not bigger than  20mm
