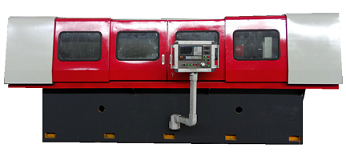

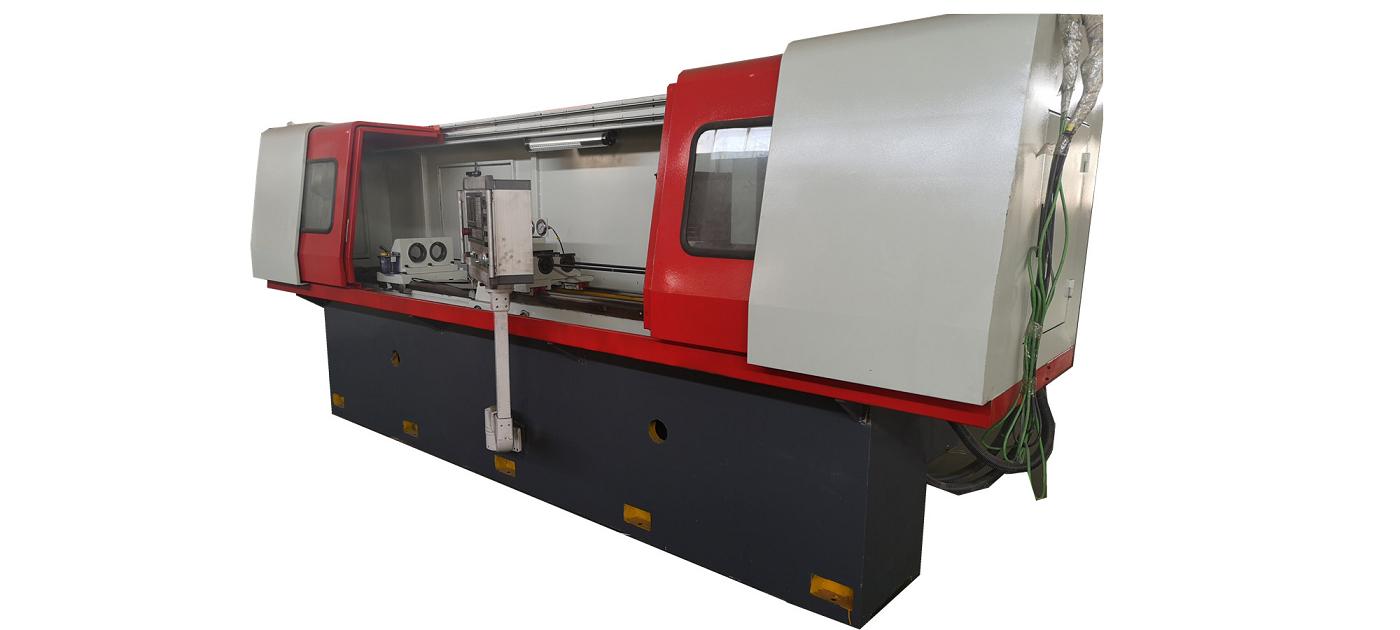

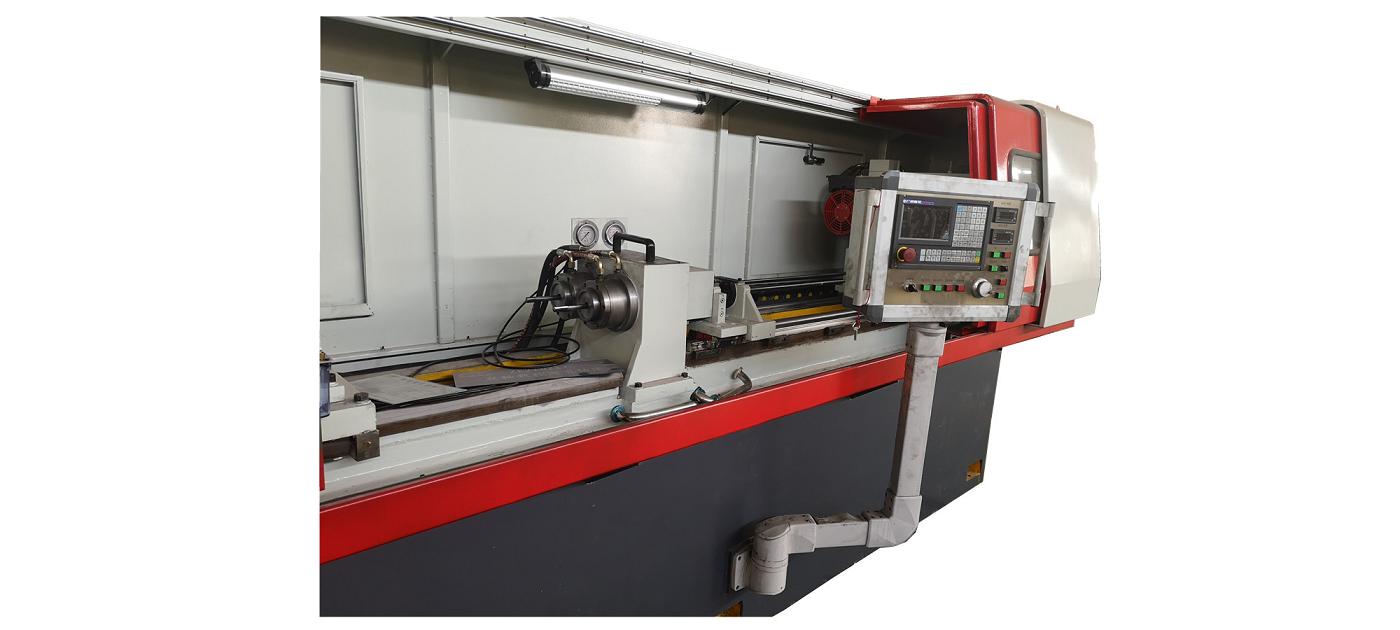

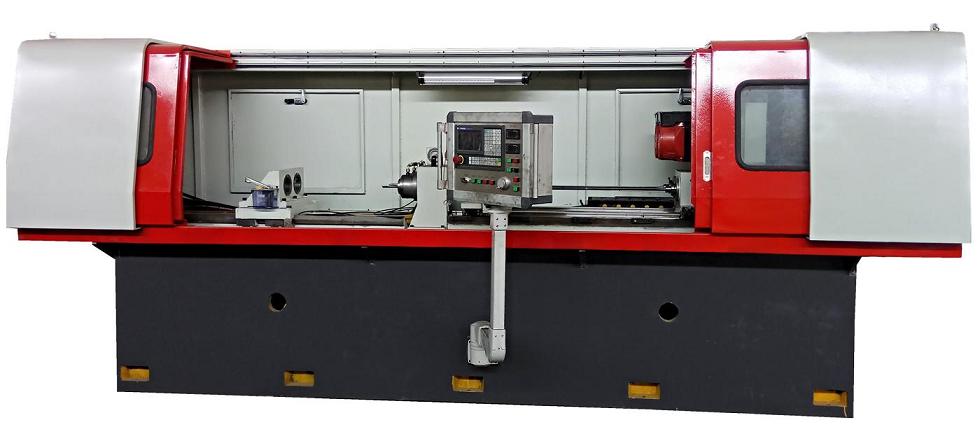

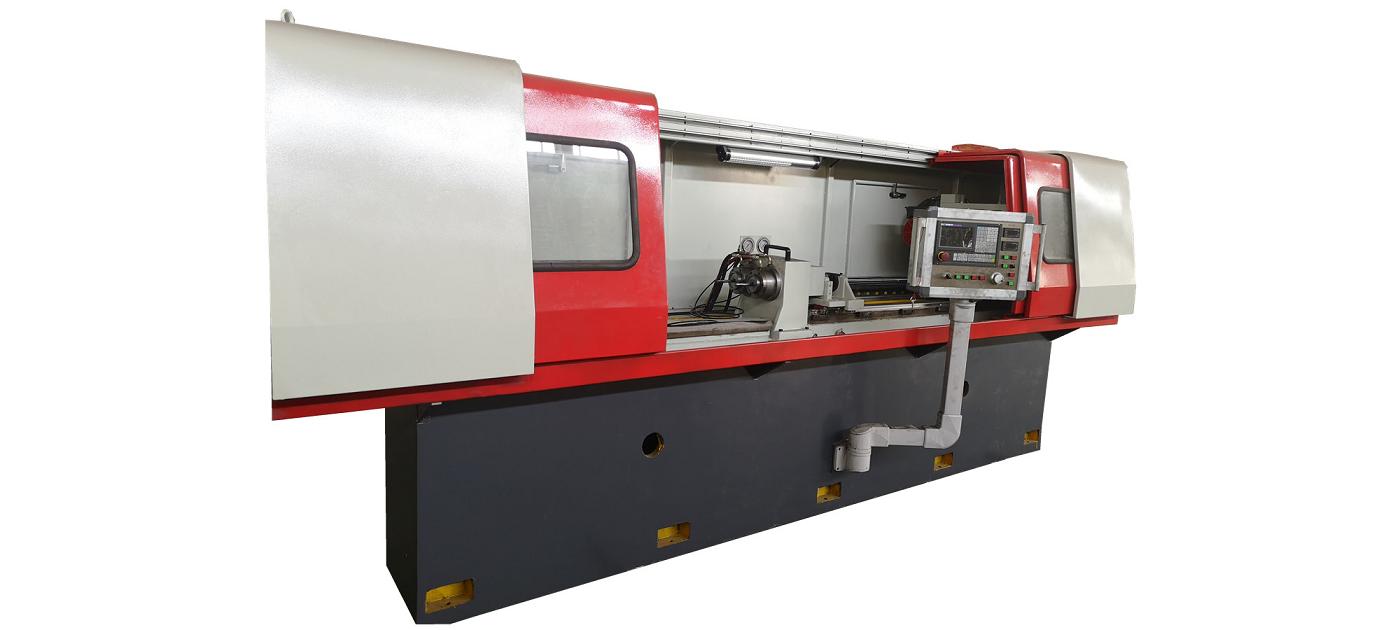

ZK2102 multi spindle gun drill machine
This ZK2102 multi spindle gun drill machine is designed for large quantity and small holes.
Ball lead screw are used for the feed system ensure smooth feeding and stable deep hole drilling.
Hydarulic workpiece clamping system.
High efficient ,high precision and high automation drilling machine.
Modular design, fast delviery.
Production method:
Workpiece fixed ,Tool rotating and feed.
Workpiece rotating, Tool counter rotating and feed.
Standard accessories:
Oil cooler
Chip conveyor
Chip tray
Paper filter
Full protection cover
Central auto lubrication
Ball screw and liner way
SPECIFICATION
SPECIFICATION
| SPECIFICATION | ZK2102 TECHNICAL DATA | |
| Caoacity | Drill ID | Ø3-20mm |
| Drill depth | 500-2000mm | |
| Spindle | Spindle quantity | 1,2,3,4 |
| Spindle speed | 400RPM | |
| Drill box | Drill box speed | 300-5000RPM |
| Feeds | Feed speed | 10-500mm/min |
| Rapid speed | 3000mm/min | |
| Motors | Drill motor | 4Kw X2 |
| Spindle motor | 3Kw | |
| Feed motor AC servo | 4.7-12Nm | |
| Cooling motor | 7.5Kw X2 | |
| Coolant unit | Filtering precision | 50µm |
| Rated pressure | 1-10Mpa | |
| Coolant volume | 100-200L/min | |
| Tank capacity | 600-1200L | |
| Finished Hole precison | ID precision | IT7-11 |
| Roughness | Ra0.8-6.3 | |
| Straightness | <0.5/1000mm | |
| CNC option | GSK,KND FANUC Siemens | |
