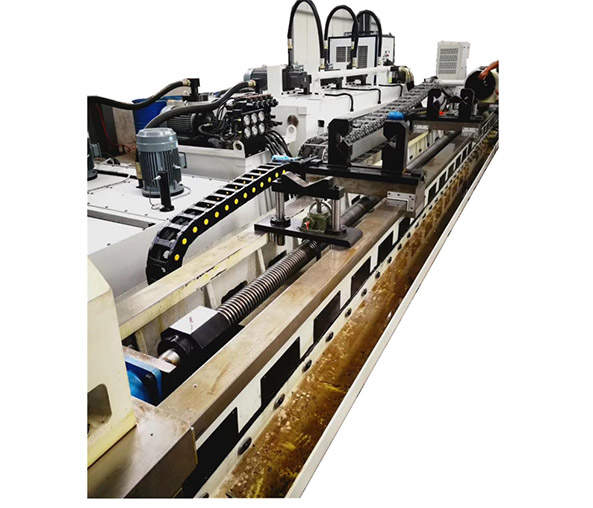

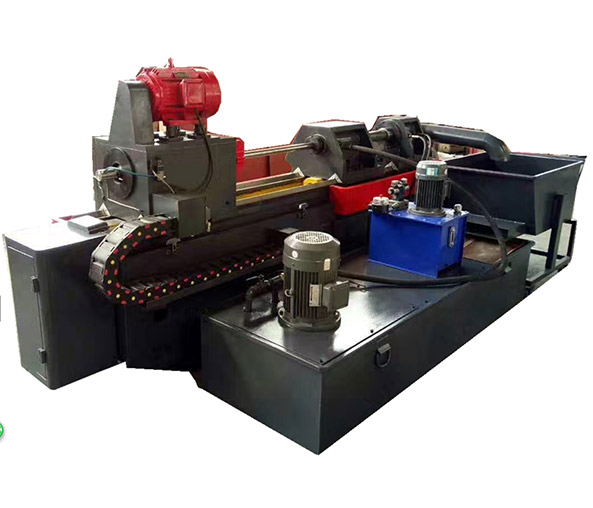

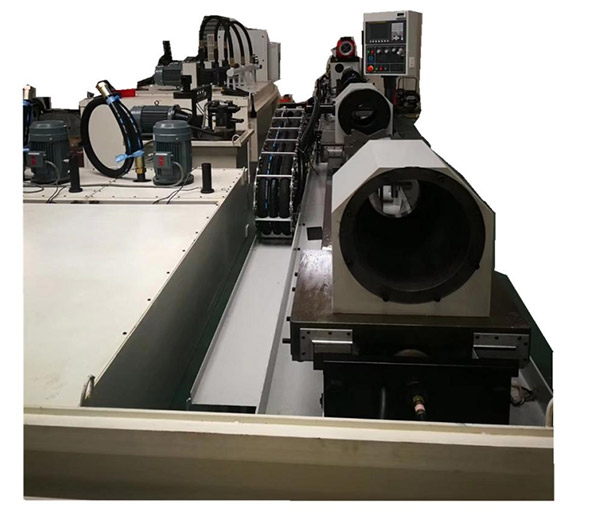

TGG 2115 Skiving and Burnishing Machine
Inquire Now
None
The machine structure and practical performance, long life, high efficiency, strong stiffness, reliable operation and pleasant.
When machining the workpiece is fixed, the tool rotates and feeds.when skiving chips and coolant are discharged from front end.
The machine is a deep hole machine, suitable for maximum skiving &burnishing diameter Φ150mm, the maximum length of 9000 mm workpiece. It is Widely used in the cylinder industry, coal industry, steel industry, chemical industry, military and other industries deep hole parts processing.
The Machine tools is equipped with high efficiency automatic combination tools. The two combination tool adopt fine boring & burnishing processing, diameter processing margin is 1mm. To machine Φ150 hole as an example: diameter margin 1mm (after rough boring or precision cold draw steel tube), feed rate can reach 300 ~ 1000mm / min (depending on the material); processing roughness can reach Ra0. 1 ~ 0.4μm, dimensional accuracy up to IT7 ~ IT9, the processing efficiency is 3 to 5 times of the traditional deep hole machine.

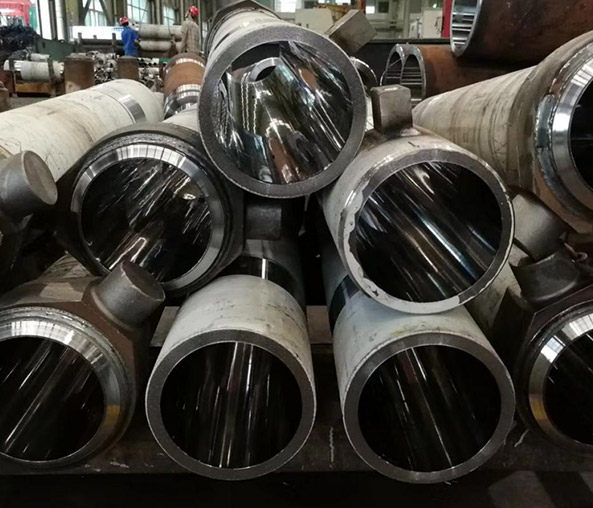

The machine is equipped with a hydraulic tool draw back system. After machining is completed, the hydraulic system drives the core rod to reduce the size of the skiving& roller burnishing tool diameter. The tool returns to the pressure head. The hydraulic system pulls the core rod to have the tool return to its original size. The processing method is particularly applicable to a variety of hydraulic cylinders, cylinders and other precision pipe boring and rolling batch processing
| Item | Data | |
| Work scope | Boring ID | Ф40-Ф150mm |
| Length of Job | 9000mm | |
| Boring box | Center height | > 260mm |
| Spindle nose | Ф80mm 1：20 | |
| Spindle speed | 30-1500r/min | |
| Spindle torque | ≥1000N.m | |
| Feed data | Feed speed | 5-1500mm/min（ infinite） |
| Rapid speed | 3m/min | |
| Accuracy | Length | 1-9m |
| Roughness of boring Roughness of burnishing | ≤Ra3.2μm≤Ra0.4μm | |
| Straightness | ≤0.05/500 mm | |
| Roundness | ≤0.036/200mm | |
| Cylindricity | ≤0.027/500mm | |
| Motors | Boring motor power | 30KW AC servo |
| Feed motor | 5.5KW AC servo | |
| Hydraulic motor | 3KW AC | |
| Cooling motor | 11KW X1+ 7.5KW X 1 | |
| Chip conveyor motor | 1.5KW、 1 | |
| Magnetic separator motor | 0.75KW、1 | |
| Lub | 0.75KW、1 | |
| Other | Pushing force of pressure head on job | 10KN |
| Coolant volume | 200L/min | |
| Rated pressure of coolant | 0.36Mpa | |
| Volume of Magnetic separator | 200L/min | |
| filer accuracy | 10um | |
| CNC control | GSK,KND , Siemens |
